Risky driving behavior warnings
The ADAS+DMS device triggers voice warnings for risky behavior such as distraction, drowsiness, lane departure, and forward collisions.
-
Real-time monitoring and multi-dimensional report analysis
The platform regularly analyzes driving behavior in different scenarios, taking vehicles, drivers, etc. as the basic units, and produces analysis reports and guidance.
-
Guidance for customized operations
Operation team provides professional guidance, based on big data, to help correct driving behavior and improve overall fleet safety.
Risky driving behavior warnings
The ADAS+DMS device triggers voice warnings for risky behavior such as distraction, drowsiness, lane departure, and forward collisions.
Real-time monitoring and multi-dimensional report analysis
The platform regularly analyzes driving behavior in different scenarios, taking vehicles, drivers, etc. as the basic units, and produces analysis reports and guidance.
Guidance for customized operations
Operation team provides professional guidance, based on big data, to help correct driving behavior and improve overall fleet safety.
HIGH PERFORMANCE
AI DEVICE
AutoRing A4
-
Product Specs
Ambarella CV22 4xA53+2TOPS NPU
2G RAM, 8G Flash
GNSS, GPS/Beidou, High Accuracy 6-Axis IMU
Camera Front 1080P, Inner 720P, Up To 30fps
4G Cellular, Ethernet, RS232, SD card
-
DMS
Face-IDFatigue Detection
Distraction DetectionAbnormal Action Detection
-
ADAS
Forward Collision WarningPedestrian Collision Warning
Headway Monitor WarningLane Departure WarningHarsh Driving and Rollover Detection
-
DVR
Front/Inner HD Video Recording
Remote Live Streaming
AutoRing X1
-
Product Specs
ADAS+DSM+BSD+DVR
Up to 8 Channels 1080p Video Recording & Video Live Streaming
HDD/SSD, Dual SD Card
RS232/RS485/CAN
GNSS, GPS/Beidou
High Accuracy 6-Axis IMU
Built-in Speaker TTS & Printer
GB/T19056-2012 JT/T794-2019
JT/T808-2019 JT/T1076-2016 JT/T1078-2016
-
BSD
Blind Spot Detection
Pedestrian, Bicycle and Motorcycle
Detection & Collision Warning
-
Harsh Driving Detection
Harsh Acceleration Detection
Harsh Turn Detection
Harsh Braking Detection
Rollover Detection
AutoRing PLATFORM
AutoRing PLATFORM
-

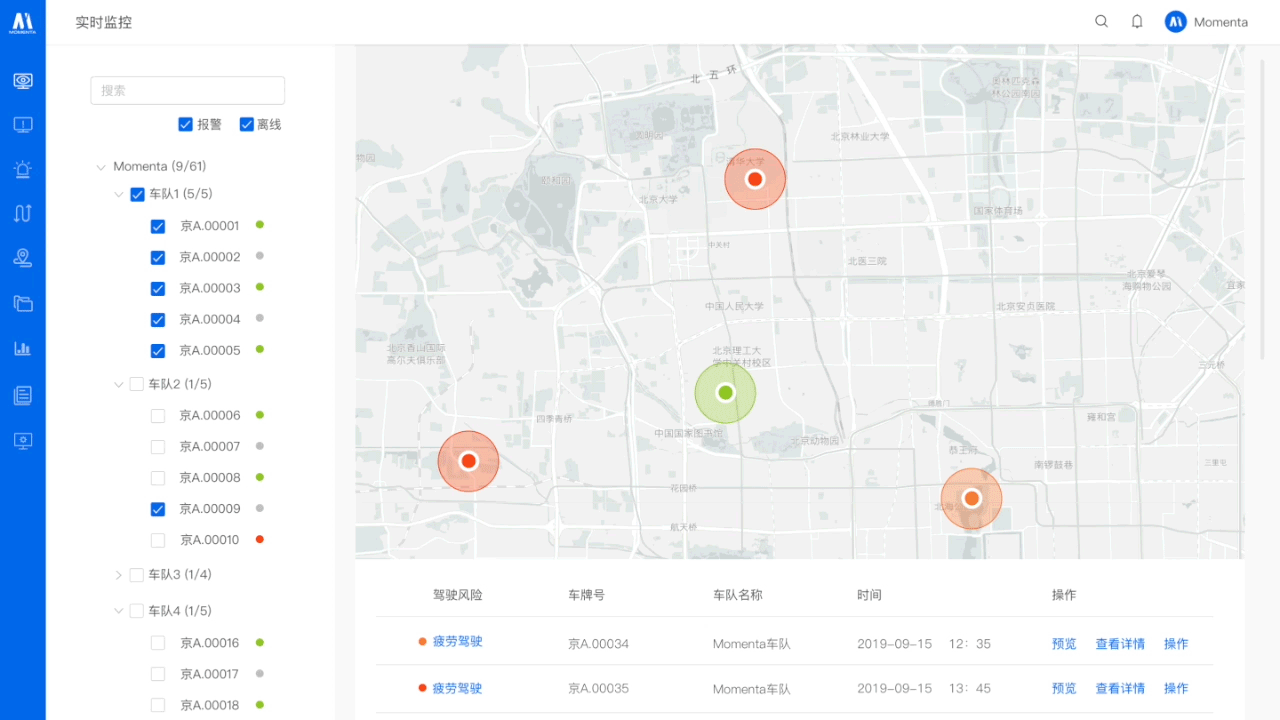

Real-Time Monitoring
The real-time location of all vehicles is shown on the map. Warmings are sent out to operators for vehicle intervention when risks emerge to ensure fleet safety.
-

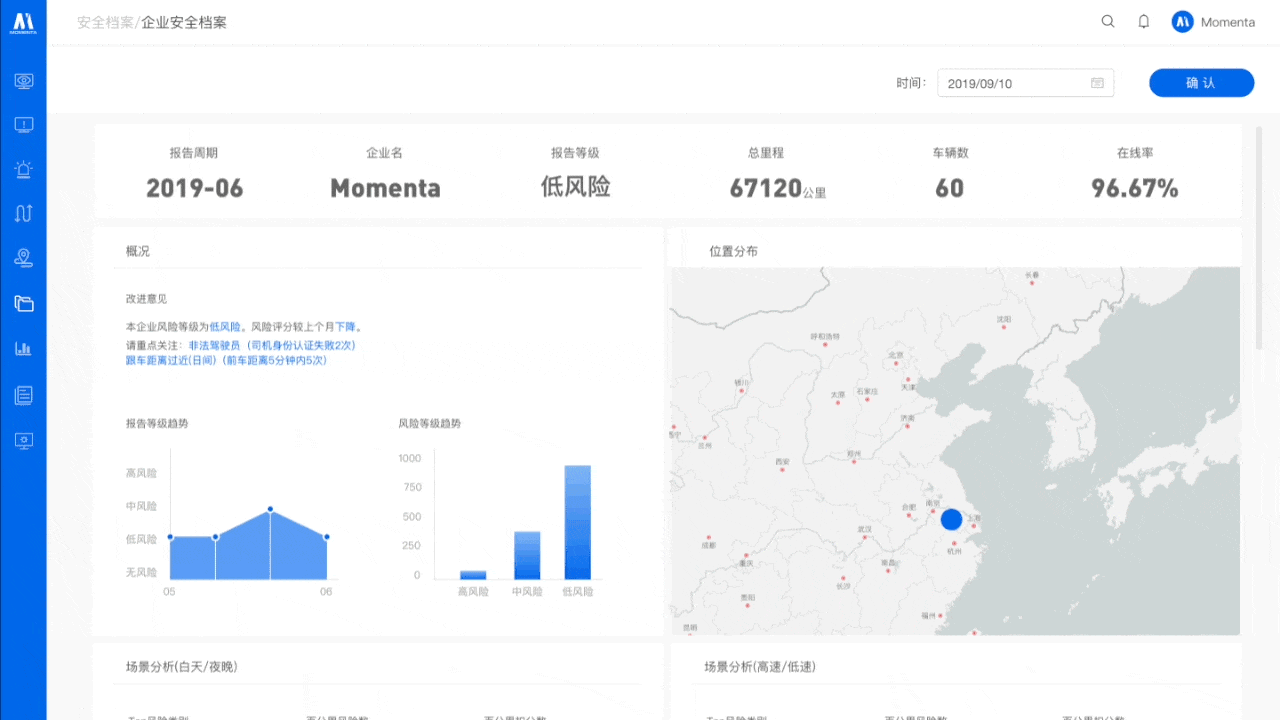

Safety Profile
Risky driving behaviors under different circumstances are analyzed in the form of daily reports, weekly reports, and monthly reports, including vehicle speed, time period, driving areas etc. These reports have offered meaningful guidance for safety management.
-

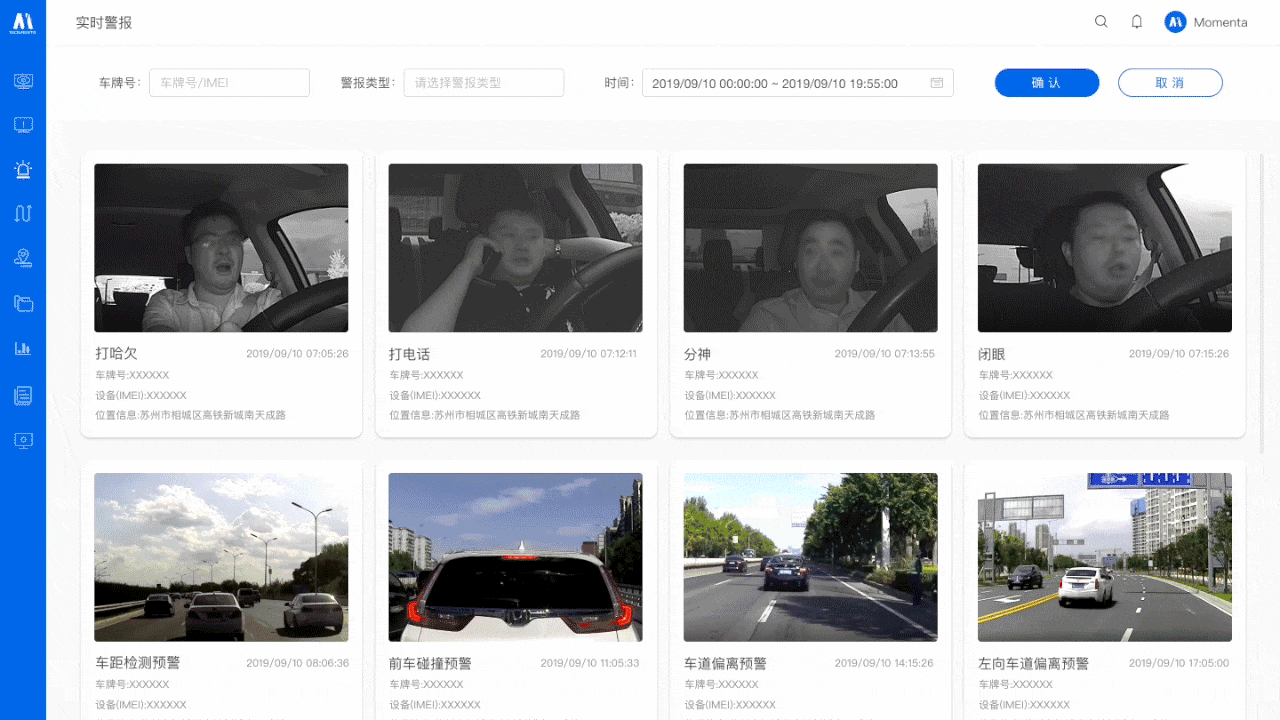

Real-Time Warning
Risky driving behaviors are captured and uploaded to cloud in real-time. Data can be viewed and filtered based on specific vehicles, vehicle models, and time window.

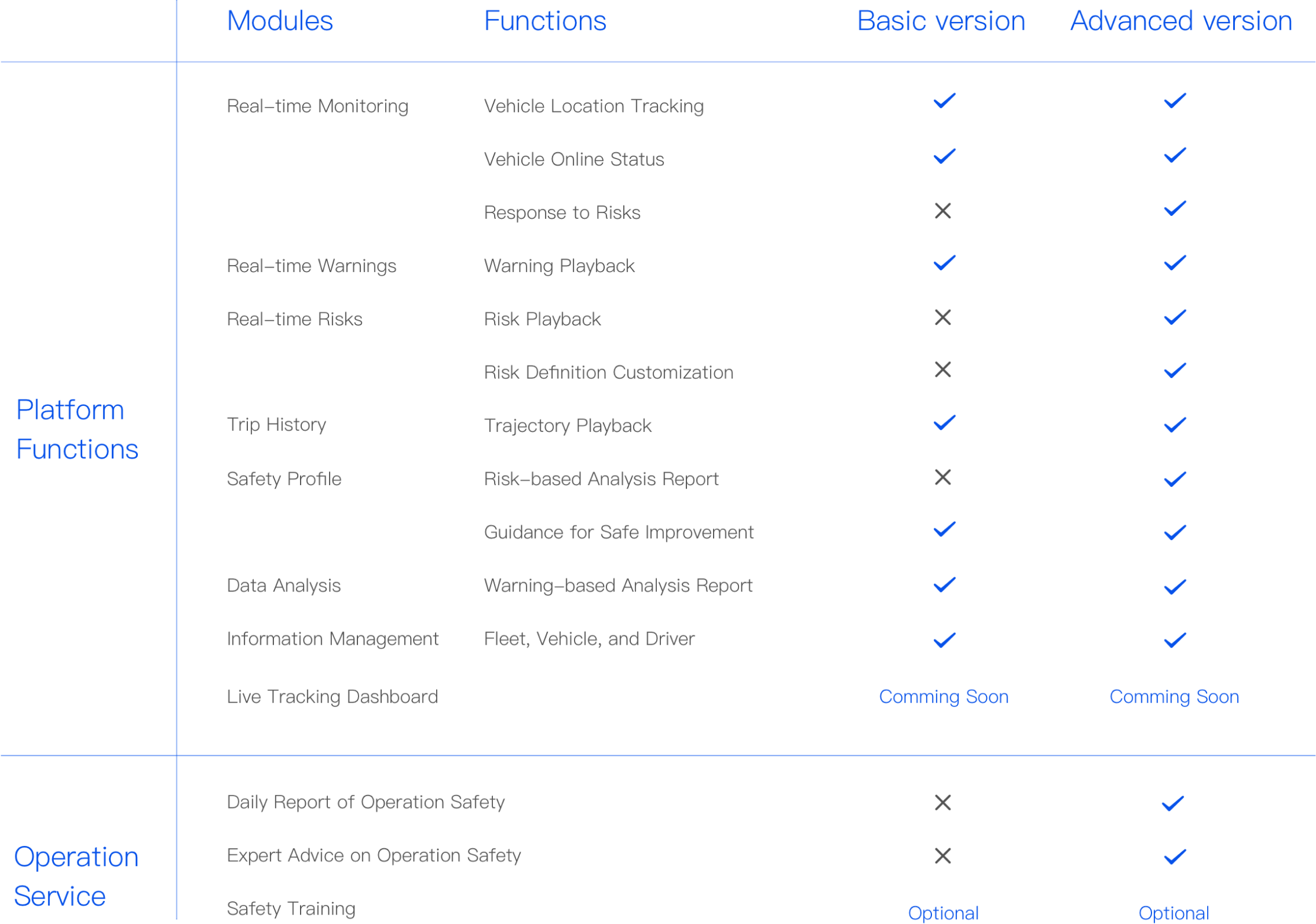

SERVICE
